Weather Station

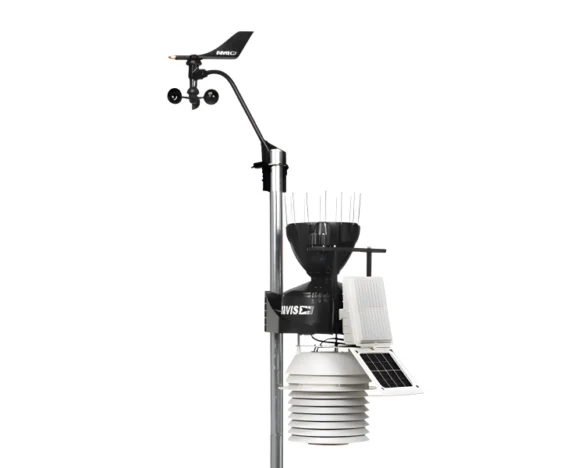

The Vantage Pro2 GroWeather wireless and cabled weather stations include an Integrated Sensor Suite (ISS) which houses and manages the external sensor array. The wireless ISS communicates via an FCC-certified, license-free, spread-spectrum frequency-hopping (FHSS) transmitter and receiver. User-selectable transmitter ID codes allow up to eight stations to coexist in the same geographic area. The frequency hopping spread spectrum technology provides greater communication strength over longer distances and areas of weaker reception. The cabled ISS communicates via cable.
The temperature and humidity sensors are shielded with both passive shielding and a solar-powered fan that draws outside air in over the sensors, providing a much more accurate temperature reading than that available using passive shielding alone.
The ISS also includes a Solar Radiation Sensor to provide accurate evapotranspiration calculations.
Features
- Site-specific Severe Storm Prediction and Detection
- Site-specific Tornado Prediction and Detection
- Level One & Level Two Heat Index Alerts
- Wind Speed and Direction, Temperature, Humidity,
- Dewpoint, Solar Radiation Data
- ET Rates and Rainfall Measurements
- Sensor suite includes outside temperature & humidity (sensors in passive radiation shield), wind speed & direction, rainfall, and solar radiation.
- Rugged weather-proof housing for years of reliable data.
Specifications
Operating Temperature:
-40° to +65°C
Non-operating Temperature:
-40° to +70°C
Wireless
⋅ Current Draw (ISS SIM only):
0.14 mA (average), 30 mA (peak) at 4 to 6 V DC
⋅ Solar Power Panel:
0.5 Watts (ISS SIM), plus 0.75 Watts (fan-aspirated)
⋅ Battery (ISS SIM):
CR-123 3V Lithium cell
⋅ Battery Life (3V Lithium cell):
8 months without sunlight - greater than 2 years depending on solar charging
Cabled
⋅ Current draw (ISS SIM only)
5 mA (average) at 4 to 6 V DC
Fan Battery
2 × 1.2 V NiMH C-cells
Fan Battery Life
Up to 2 Years
Fan Aspiration Rate
⋅ Intake Flow Rate - full sun
0.9 m/s
⋅ Intake Flow Rate - battery only
0.4 m/s
⋅ Sensor Chamber Flow Rate - full sun
2.5 m/s
⋅ Sensor Chamber Flow Rate - battery only
0.9 m/s
Connectors, Sensor
Modular RJ-11
Cable type
4-conductor, 26 AWG
Cable length, Anemometer
12 m (included), 73 m (maximum recommended)
Note:
Maximum displayable wind decreases as the length of the cable increases. At 42 m of cable, the maximum wind speed displayed is 60 m/s; at 73 m, the maximum wind speed displayed is 34 m/s.
Wind Speed sensor
Solid state magnetic sensor
Wind Direction sensor
Wind vane with potentiometer
Rain Collector type
Tipping bucket, 0.01" per tip (0.2 mm with metric rain adapter), 214 cm² collection area
Temperature Sensor type
PN Junction Silicon Diode
Relative Humidity Sensor type
Film capacitor element
Housing material
UV-resistant ABS, ASA Plastic (SPARS only)
ISS Dimensions (not including anemometer or bird spikes)
536 mm × 246 mm × 406 mm
TG360 - THORTV

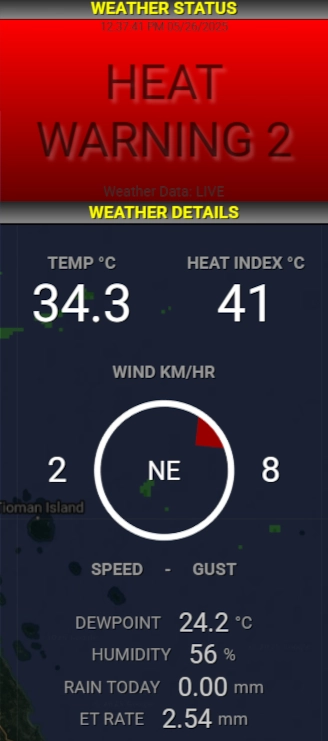

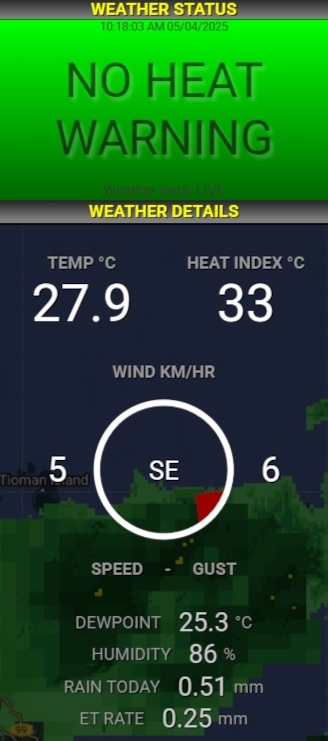

Right side of ThorServer Updates Every 2.5 Seconds Displaying:
- Alert Status of the Weather Station
- Current Temperature & Heat Index
- Current Dewpoint & Humidity
- Current Wind Direction, Speed & Gust
- Daily Precipitation & ET Rate
