TG360
THOR GUARD (TG) began manufacturing Lightning Prediction Systems in 1973. Over the years, TG has analysed millions of hours of Lightning Strike Data with over a billion hours of operations—all for the purpose of continually improving TG's unique Prediction and Detection Technology incorporating state-of-the-art hardware. TG's ongoing goal is to continue creating and distributing the safest Lightning Warning Systems in the World and doing so with TG's own exceptional designers, engineers and meteorologists, as well partners from around the world such as Oracle Mystiques.

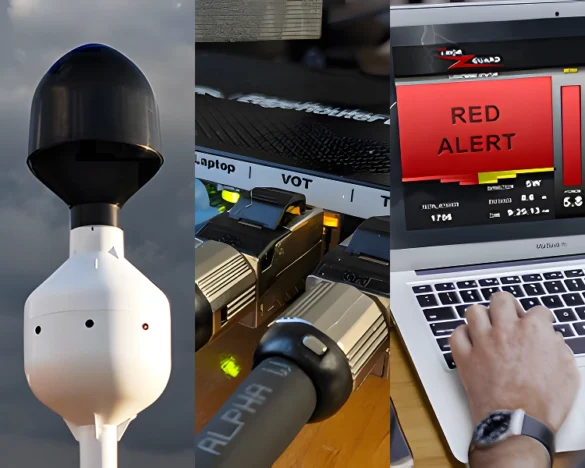

TG’s New TG360 sets an incredible level of prediction and detection technology never seen before combining entirely new detection technology, faster atmospheric data acquisition and proven algorithms for all storm predictions. Our team has created a system responding to the demands of our customers. TG’s most advanced technology ever for those who demand the best.
- Onsite Lightning Prediction and Detection
- Works regardless of whether the power or internet goes down
- Onsite weather station and national radar included
- 2 Year TG360 assembly warranty and lifetime software upgrades
Features
- Atmospheric sampling of greater than 170,000 samples per second
- 50 Ms Decision Process Tree
- Output voltage analysis range of +/-70 Volts (minimum)
- Triple Aspect Electrostatic Analysis for predictions
- Electrostatic Lightning Detection—providing distance and direction
- Lightning Detection Acquisition Time—eight millionths of a second (0.000008s)
- NCAA Lightning Detection Protocol (user selectable)
- Site-specific Severe Storm Prediction and Detection
- Site-specific Tornado Prediction and Detection
- With the optional Weather Station
- Level One and Level Two Heat Index Alerts
- Wind Speed and Direction, Temperature, Humidity
- Dewpoint, Solar Radiation Data
- ET Rates and Rainfall Measurements
- Gens (Guardian Emergency Notification System)
- 2-year warranty on TG360 assembly
- Lifetime Software Upgrades
Modules
Lightning Prediction Sensor
(Maintenance-free)
VOT BD or VOT RC
VOT Horn
LED Strobe Light
Specifications
Models:
THOR GUARD 360 (TG360)
Safety Specification:
TÜV (NTRL), CE
Power Requirement:
- Voltage: 120-240 Volts AC, 50-60 Hz, Single Phase
- Power: 10A, 50 Watts
Power Supply:
- Ubiquiti Network’s EdgeRouter
- POE Model Erpoe-5
- 48 Volt 1.25a Power Supply
- Safety Requirements; CE
Ethernet Cable:
Alpha Wire Xtra-Guard Industrial Ethernet 76021
- CMR 75C FT4 ANSI/TIA-568-C.2 Cat 5E with sequential footage markings
- CE ROHS Verified
Base Management System
- Windows 8 or higher, 10 preferred
Sensor and TG360 module
- Dimensions: 6“ W × 20” H
- Weight: 5 Lbs. (Excludes Cable)
VOT Comm-Link Cable:
- Alpha Wire Xtra-Guard Industrial Ethernet 76021
VOT Horn Cable:
- General Cable 234600, 12 Awg Four Conductor
VOT Air Horn Cluster:
- ASA Dome and Mounting Plate Assembly
- Weight: 8 Pounds (Less Cable)
- Sound Output: 113 Db@10 Feet,
- 700 Yard 360 Degree
- Sound Dispersion (Adjustable)
Strobe Light:
- Amber Standard: Blue and White Optional
- Whelen 51 Series
- Caution and Warning (Lightning) OR
- Level 1 and Level 2 Heat Index Notifications
- Dimensions: 3.9” H, 5.2” D, Weight 1 Pound
- (Excludes Cable): West Penn Aq224.
- 18awg 2 Conductor
RF Specifications:
- Frequency: 27.255mhz Fsk
- Output Power: 4 and 12 Watts
- West Penn Rg58/u Coaxle Ohn
- 95% Tinned Copper
