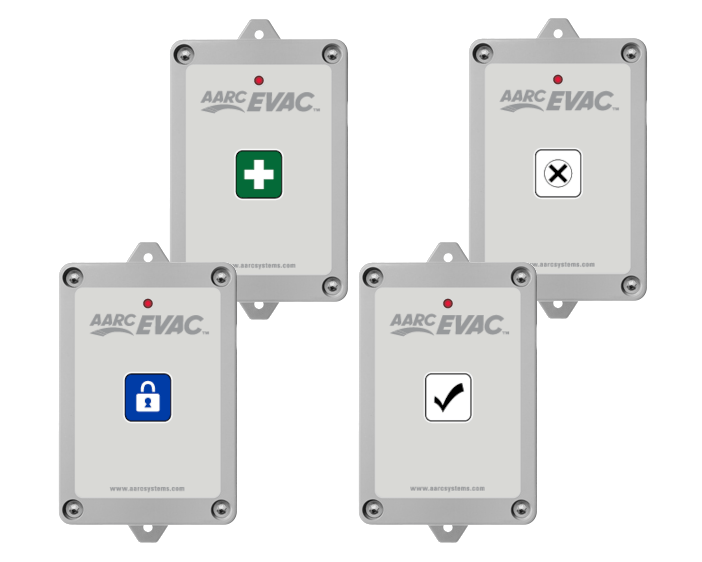

AARC-EVAC™ Single Button Transmitters

AARC-EVAC™ Wireless Linked Emergency Alert Systems are designed to be activated by AARC-EVAC™ Alert Panel transmitters.

AARC-EVAC™ Alert Panel transmitters use a single channel digital wireless link to remotely trigger “Evacuation”, “Lock Down”, "First Aid", "Duress", “Alert”, and "Drill", and one of up to 8 or 9 unique First Aid Assist or Duress assistance zone messages, plus a "Cancel" signal to the AARC-EVAC™ Receiver/ Message Players and/or the AARC-EVAC™ Wireless Linked Visual Alert Beacon Units.

Features

  • Portable or Easy installation – Wireless Linked Digital Radio system, no wires or wiring required
  • Operating range up to 300 metres (Varies upon transmitter & receiver location)
  • Secure operation with over 4 billion unique 32Bit digital codes
  • Powered by 2 x AAA Alkaline batteries (life of greater than 1 year with average use)
  • Optional 3 sec button press required to trigger an alarm (to avoid accidental or nuisance triggering)
  • Internal Antenna (not applicable to units with an External Antenna Interface)
  • Red LED lamp lights continuously while button pressed to visually confirm transmission
  • Low battery warning – Slow Flashing Red LED lamp, when any button pressed (Adding “Battery Replacement” to Annual Maintenance Schedule – Recommended)
  • Designed & Manufactured in Australia

Models

Evacuation
evacuation

· ATX22-EV (Handheld)

· ATX32-EV-G (Wall Mount)

· ATX32-EV-G-E (Wall Mount with External Antenna Interface)

Note: The remote also includes a hidden cancel button

Lock Down
lockdown

· ATX21-LD (Handheld)

· ATX31-LD-G (Wall Mount)

· ATX31-LD-G-E (Wall Mount with External Antenna Interface)



First Aid
first aid

· ATX21-FA (Handheld)

· ATX31-FA-G (Wall Mount)

· ATX31-FA-G-E (Wall Mount with External Antenna Interface)



Duress
duress

· ATX21-DU (Handheld)

· ATX31-DU-G (Wall Mount)

· ATX31-DU-G-E (Wall Mount with External Antenna Interface)



All Clear
all clear

· ATX21-AC (Handheld)

· ATX31-AC-G (Wall Mount)

· ATX31-AC-G-E (Wall Mount with External Antenna Interface)



Bell
bell

· ATX21-BE (Handheld)

· ATX31-BE-G (Wall Mount)

· ATX31-BE-G-E (Wall Mount with External Antenna Interface)



Drill
drill

· ATX21-DR (Handheld)

· ATX31-DR-G (Wall Mount)

· ATX31-DR-G-E (Wall Mount with External Antenna Interface)



Cancel
cancel

· ATX21-CN (Handheld)

· ATX31-CN-G (Wall Mount)

· ATX31-CN-G-E (Wall Mount with External Antenna Interface)



Specifications

Operating Range:

Up to 300 metres (Varies upon Remote Transmitter & Evac Controller location)

Power Supply:

2× AAA (UM-4 1.5V) Alkaline Type (life of 1 year with average use).

Warning: Do not use Lithium type 1.5V cells, as this type of battery may damage the unit.

Unique Coded Digital Radio:

32-bit (over 4 billion unique digital codes)

Case Material:

ABS

Low Battery Warning

Yes (Red lamp flashes when button is pressed)

Dimensions:

90 x 60 x 20mm (Handheld)

125 x 69 x 40mm with 111.5mm mounting centres (Wall Mounted)

Weight (without batteries):

70g (Handheld)

127g (Wall Mounted)

137g (Wall Mounted with External Antenna Interface)
