AARC-EVAC™ Multi-Button Transmitters
AARC-EVAC™ Wireless Linked Emergency Alert Systems are designed to be activated by AARC-EVAC™ remotes.

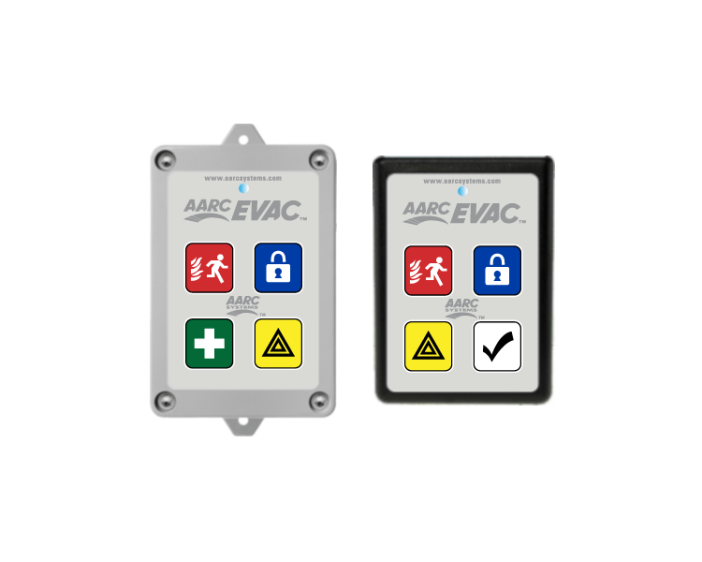

AARC EVAC Remote Transmitters come in either Hand Held (ATX2 Series) or Wall Mount (ATX3 Series). Hand Held remotes can be used as a portable transmitter. However they can also be wall mounted using Velco hook and loop fastening for maximum placement flexibility or as a home when not required for remote use, ie yard duty. Wall Mount remotes are designed to be wall mounted with 111.5mm mounting centers.
Features
- Portable or Easy installation – Wireless Linked Digital Radio system, no wires or wiring required
- Operating range up to 300 metres (Varies upon transmitter & receiver location)
- Secure operation with over 4 billion unique 32Bit digital codes
- Powered by 2 x AAA Alkaline batteries (life of greater than 1 year with average use)
- Optional 3 sec button press required to trigger an alarm (to avoid accidental or nuisance triggering)
- Internal Antenna
- Red LED lamp lights continuously while button pressed to visually confirm transmission
- Low battery warning – Slow Flashing Red LED lamp, when any button pressed (Adding “Battery Replacement” to Annual Maintenance Schedule – Recommended)
- Designed & Manufactured in Australia
Evacuation
Lockdown
First Aid
Duress /
Bomb Threat
Lightning Alerts
All Clear
Drill
All Purpose Models
ATX25-LD (Hand Held)
ATX35-LD-G (Wall Mount)
ATX25-AC (Hand Held)
ATX35-AC-G (Wall Mount)
ATX25-DU (Hand Held)
ATX35-DU-G (Wall Mount)
ATX25-AS (Hand Held)
ATX35-AS-G (Wall Mount)
Comparison
ATX25-LD / ATX35-LD-G
ATX25-AC / ATX35-AC-G
ATX25-DU / ATX35-DU-G
ATX25-AS / ATX35-AS-G
Duress Button
Evac Button
First Aid Button
Lockdown Button
All Clear Button
Hidden Cancel Button
AARC GOLF
ATX25-GO (Hand Held)
ATX35-GO-G (Wall Mount)
ATX25-GO /
ATX35-GO-G
Bad Weather Warning
Take Shelter / Course Closed
Competition Start
All Clear / Resume Play
Cancel
Specifications
Operating Range
Up to 300 metres (Varies upon Remote Transmitter & Evac Controller location)
Power Supply
2 × AAA (UM-4 1.5V) Alkaline Batteries* (life of 1 year with average use)
Unique Coded Digital Radio
32-bit (over 4 billion unique digital codes)
Case Material
ABS
Low Battery Warning
Yes (Red lamp flashes when button is pressed)
Size
- 90 × 60 × 20mm (Hand Held)
- 125 × 69 × 40mm with 111.5mm mounting centres (Wall Mount)
Weight (without batteries)
- 70g (Hand Held)
- 127g (Wall Mount)
*WARNING:
- DO NOT use Lithium Type 1.5 V AAA Batteries – Use Alkaline Type ONLY!
- Lithium Type 1.5V cells may damage the Button Transmitter unit.
